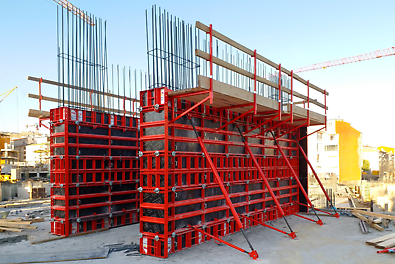

HANDSET Alpha in action
Your benefits at a glance-
The low number of reusable system components reduces the amount of material loss on the construction site as well as the amount of timber required.
-
Assembly is carried out quickly and intuitively by just two people - without the need for a crane. This makes HANDSET Alpha particularly efficient.
-
The high permissible concrete pressure of 60 kN/m² for walls and up to 75 kN/m² for columns minimises errors and speeds up the concreting process.
Product data sheet
System type
Robust panels with a weight of 34 kg/m²
Dimensions
Element heights: 3.00 m/1.50 m/1.20m,
Element widths: 0.90 m/0.60 m/0.30m
Area/Support
All of the panels can be used as multi-panels
Fresh concrete pressure

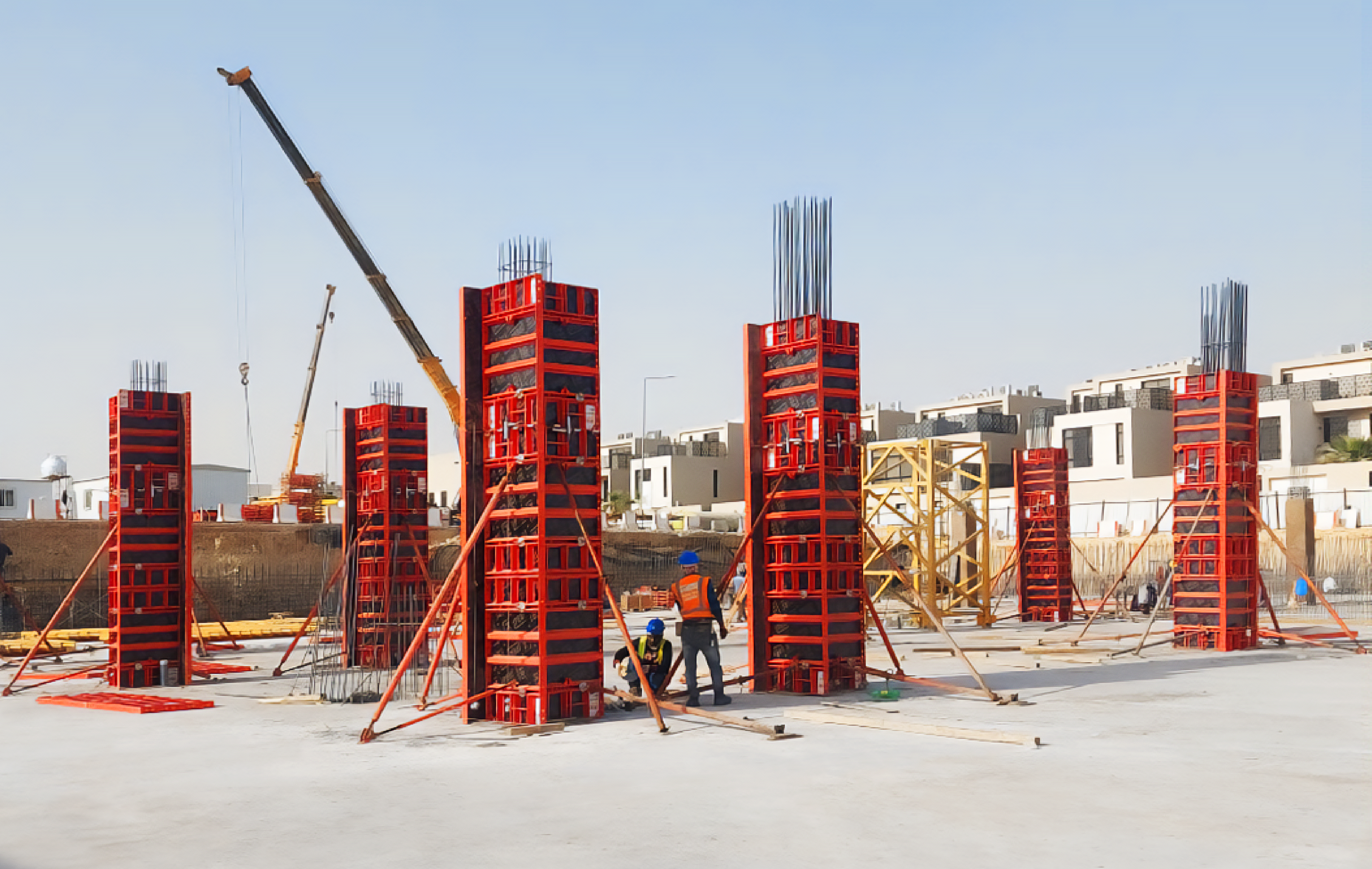

Max. permissible fresh concrete pressure: 60 kN/m² (for walls), Max. permissible fresh concrete pressure: 60 kN/m² (for columns up to 900mm x 900mm), Max. permissible fresh concrete pressure: 75 kN/m² (for columns up to 600mm x 600mm)
Material
Steel and powder-coated panels
Fulfilled standard
Basically for all applications: flatness according to DIN 18202, table 3, line 6
Technical requirements
no crane required
Other
Easy cleaning due to inclined profiles in combination with high-quality powder-coated frames.
