Safety
Safe and easy installation through self-locking ledgers, optional ladder integration, light weight single parts and intuitive usage.
-
High capacity
High leg load bearing capacity of up to 100 kN/leg leads to high efficiency.
-
Compatibility
Flexibly adaptable to different building geometries and a wide range of applications due to the modular design. Combinablity with PERI UP allows integration with additional applications, ensuring high material utilization.
-
Few components, easy maintenance
Few system components, innovative design, and repetitive assembly steps facilitate rapid and efficient working operations. Easy cleaning and maintenance due to robust design and galvanized parts.
Technical Details
PERI UP Shoring Tower MD
-

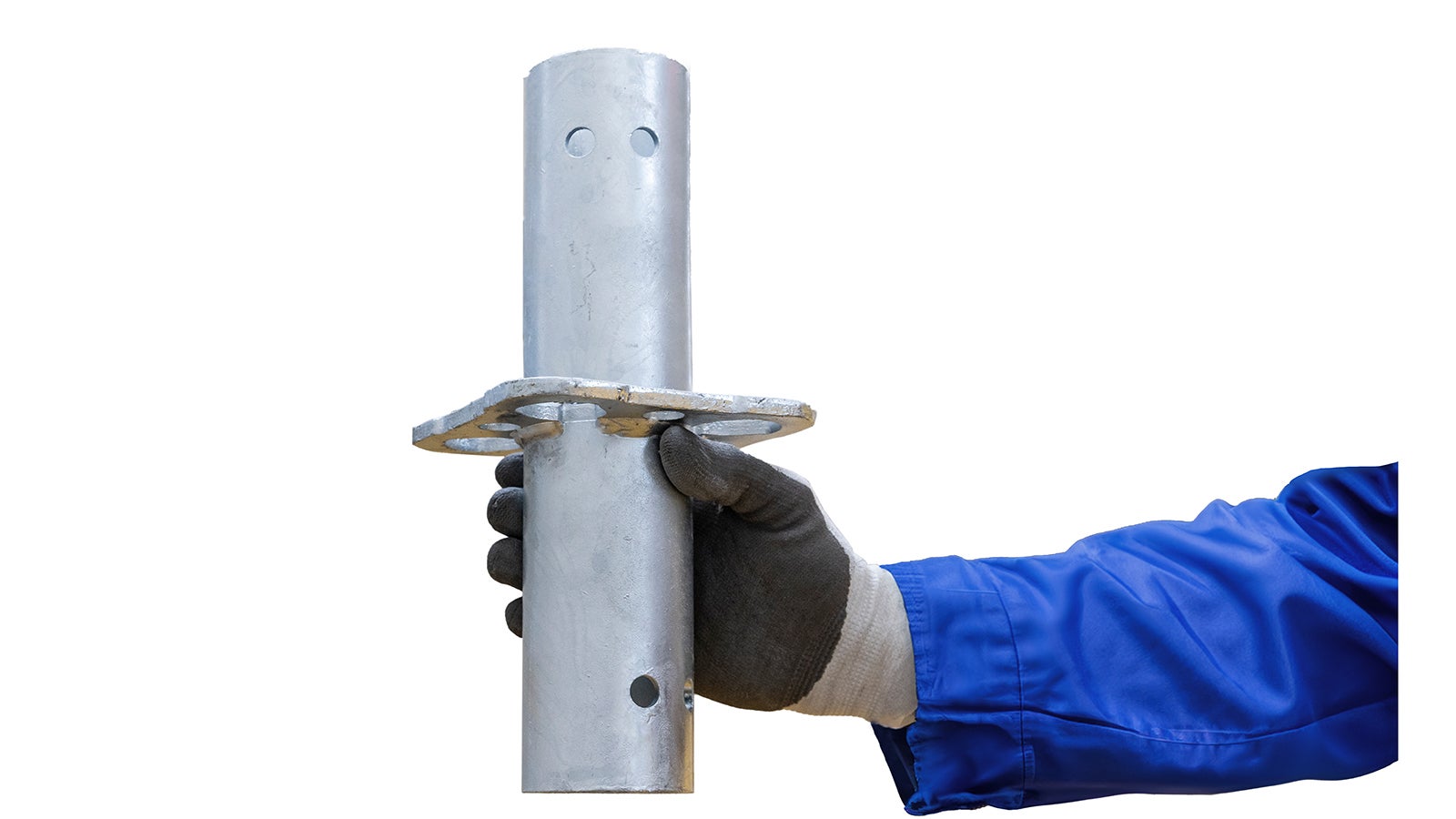

![PERI UP Shoring Tower MD - Connector MD]( "PERI UP Shoring Tower MD - Connector MD")
Three functions combined in a single componentThe Connector MD serves as a versatile core element, integrating a base standard, spigot, and nodal connection ring into a single piece. The PERI UP node design enables straightforward integration of PERI UP ledgers and diagonals, enhancing efficiency and simplicity during assembly.
-

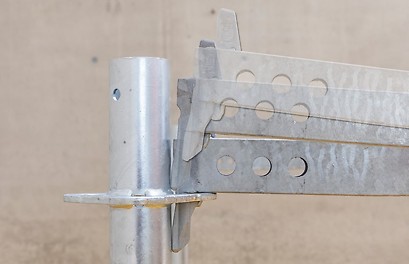

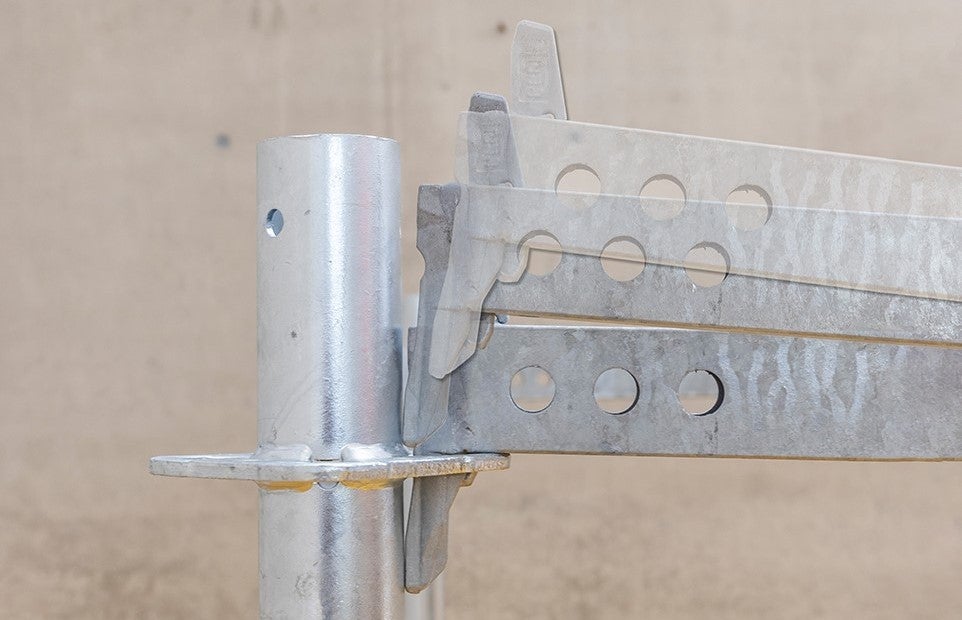

![PERI UP Shoring Tower MD - Gravity Lock Technology]( "PERI UP Shoring Tower MD - Gravity Lock Technology")
Effortless and safe assembly using Gravity Lock TechnologyWhen inserting the ledger into the Connector MD, the wedge drops automatically through gravitational force and secures the connection rigidly. This mechanism enables ledgers to be installed with ease from a safe position and therefore improves efficiency and worker safety on site.
-

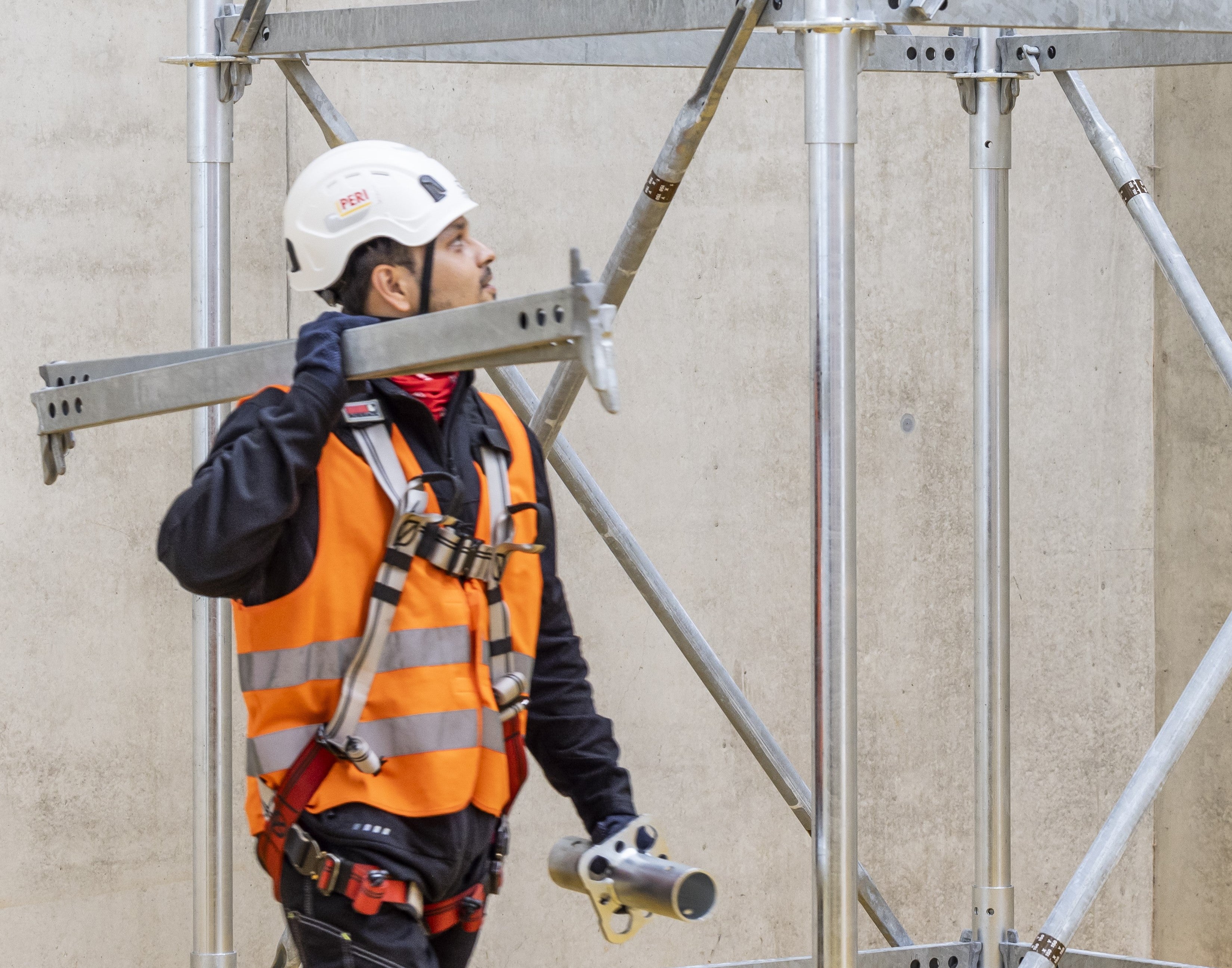

![PERI UP Shoring Tower MD - lightweight components]( "PERI UP Shoring Tower MD - lightweight components")
Streamlined approachThe small number of lightweight components enables you to assemble and dismantle the shoring tower quickly, safely and ergonomically. This streamlined approach not only speeds up the construction process but also reduces labour costs and the need for extensive on-site training.
-

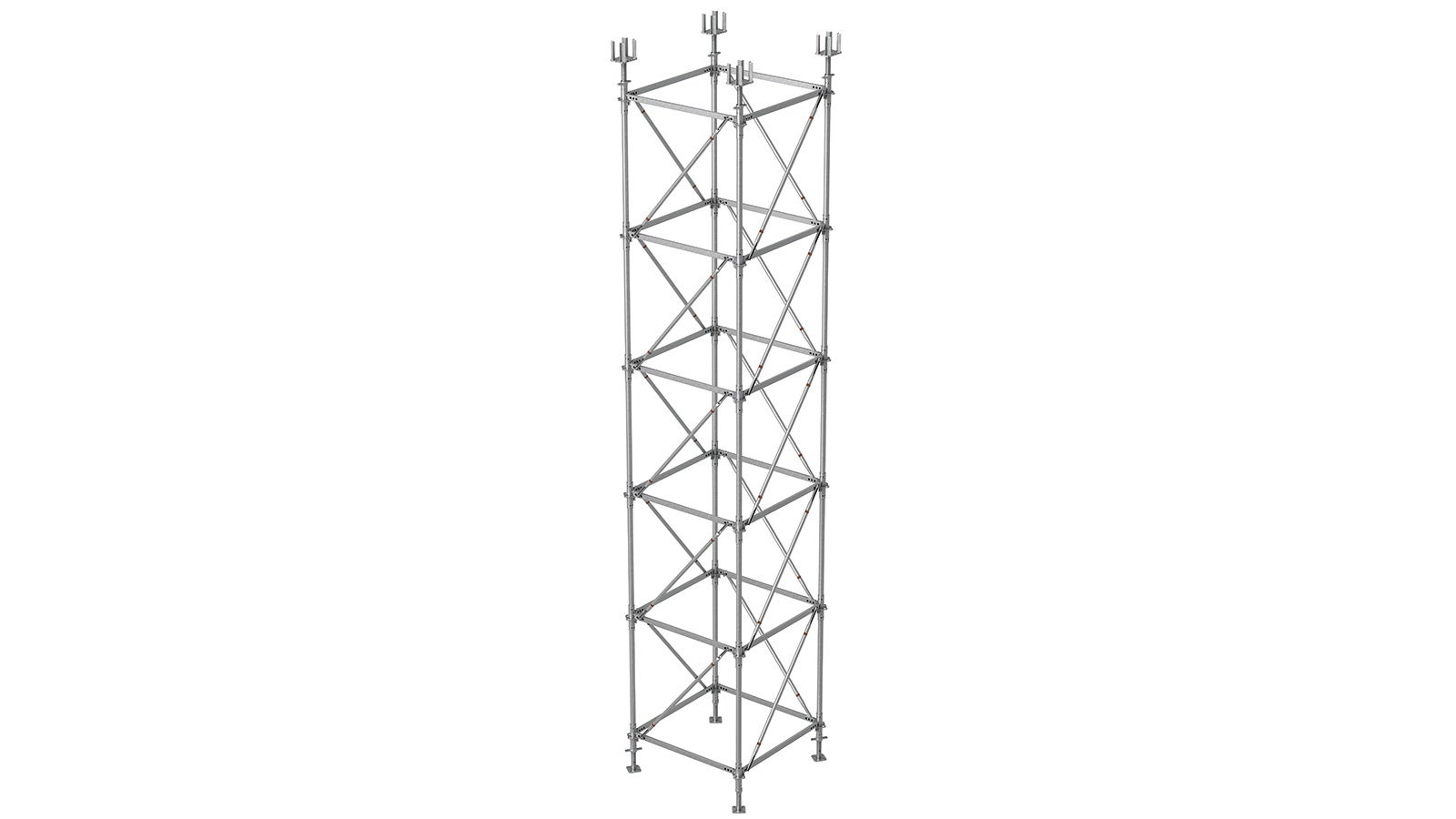

PERI UP Shoring Tower MDThe PERI UP Shoring Tower MD is a versatile medium-duty shoring system specially designed for infrastructure projects and building construction with thick slabs. Its modular and flexible design with gravity lock technology ensures quick and safe assembly, offering up to 100 kN per leg load-bearing capacity.
Reference Projects

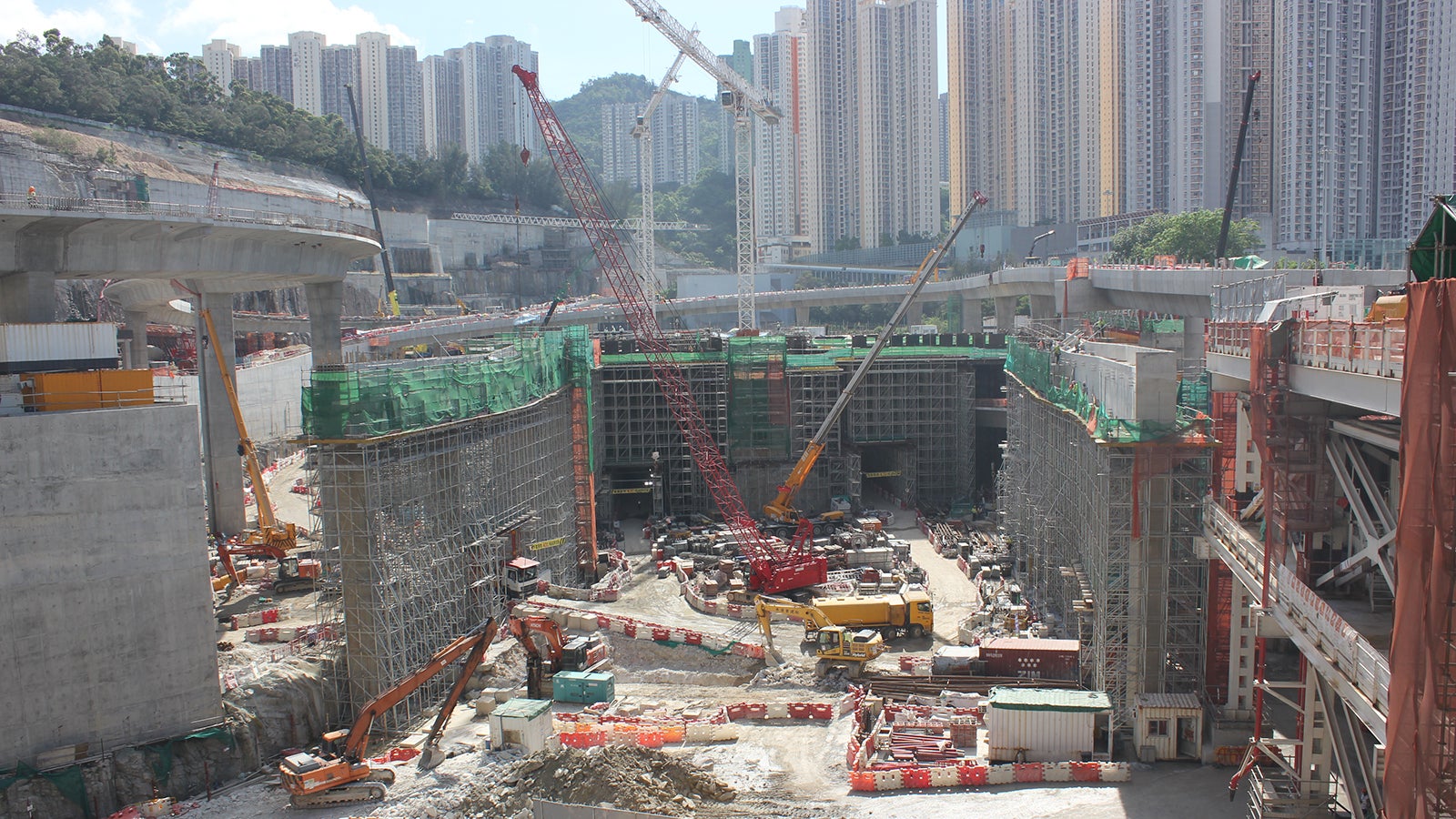

The Tseung Kwan O – Lam Tin Tunnel (TKOLTT) spans approximately 4.2 km, connecting Tseung Kwan O and East Kowloon. An approximately 3.8 km dual two-lane highway is constructed, along with facilities and associated buildings such as civil, structural, marine, electrical and mechanical, traffic control and surveillance system, landscaping, as well as environmental mitigation measures.
Central to the project‘s scope is the creation of the deck, a significant undertaking requiring robust shoring towers and adaptable falsework systems tailored to different project segments. To meet these demands, PERI provided the PERI UP Shoring Tower MD, which is characterized by high load-bearing capacity. The system‘s simple setup facilitated swift and efficient assembly, while its combinability with other PERI systems allowed seamless integration into the project solution.

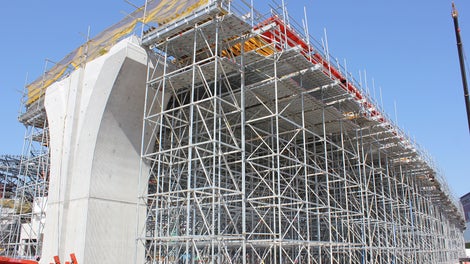

As an integral part of the Three-Runway System (3RS) project, the existing Terminal 2 (T2) at Hong Kong International Airport (HKIA) will be expanded to provide full-fledged terminal services, serving departure, arrival, and transfer operations. The project necessitated a dependable falsework system to ensure a secure working environment as well as a versatile formwork to construct the curved bridge deck. For this purpose, PERI provided the PERI UP Shoring Tower MD, facilitating the construction of the T2 expansion. Complementing this, the VARIOKIT Engineering Construction Kit was used as a flexible system to fulfil diverse requirements on various shapes.
